Edit Mode is only available if you have the correct access Permissions. If you do not have the required access permissions you will see the following message:
Access Denied. You are not authorised to perform this task, please contact your System Administrator.

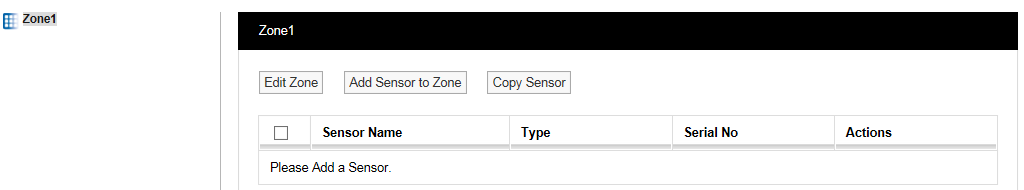

After selecting Edit Mode the Sensor and Zone editing/configuration window appears, see below.

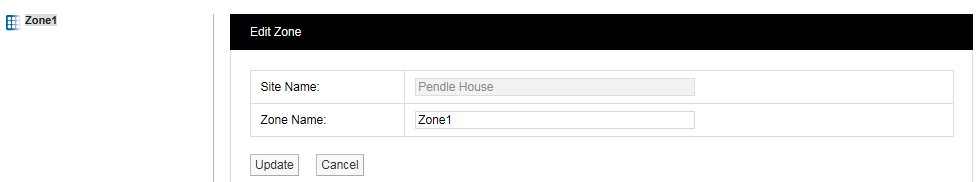

To Edit the Zone select Edit Zone. the Edit Zone window will appear, see below.

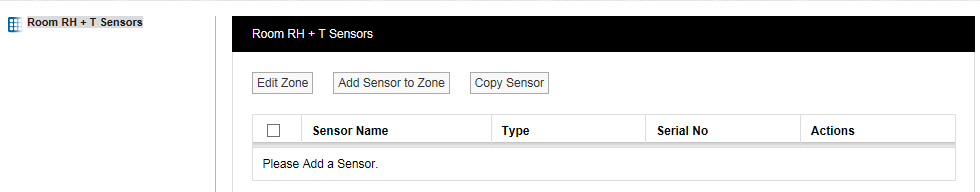

Select a name for the Zone that will make it easy to identify either the type of sensors in the Zone or the location of the Zone. In this example we are changing the Zone1 name to ‘Room RH + T Sensors'. Enter the name into the Zone Name field, once happy select Update, see below.
