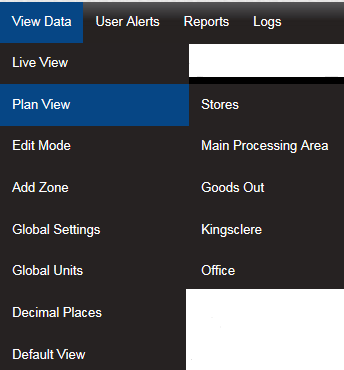

Notion Pro allows you to allocate Plans to a Zone. Plan View gives a graphical view of the data. To access Plan View select View Data>Plan View from the top menu bar, see below.
To add a Plan select Browse... to locate a suitable Plan file if available, suitable Plan formats are .gif, jpg and .png and should be no larger than 30K, see below.
Once a suitable Plan has been located select Upload to load the image.

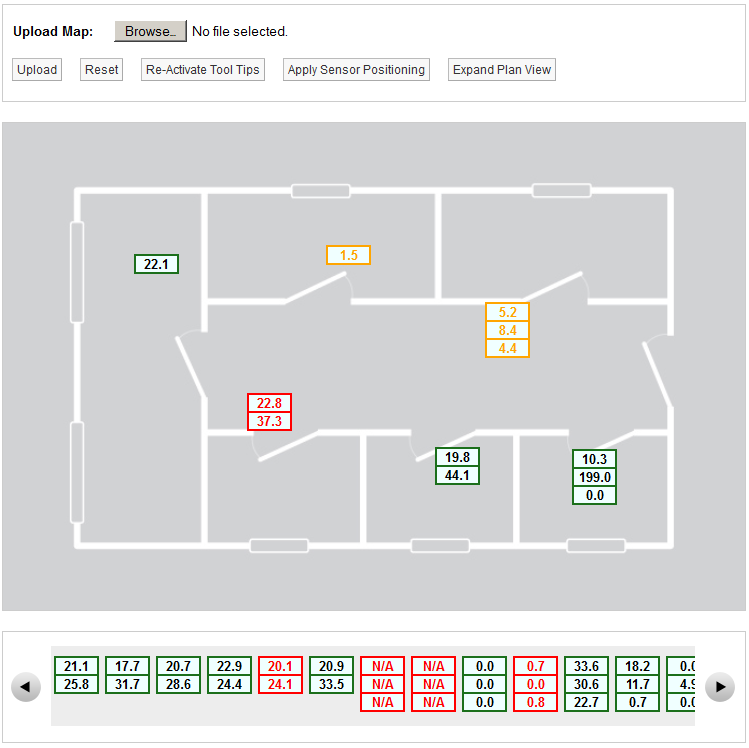

When a plan is first loaded all the sensor icons will be located along the bottom bar. The icons can be dragged to the Plan by moving the mouse pointer over the icon, holding down the left mouse button and dragging the required sensor icon to the desired location on the Plan, see below. You must have the Plan View Edit Permission set to Allow to be able to do this. (See Access Control).

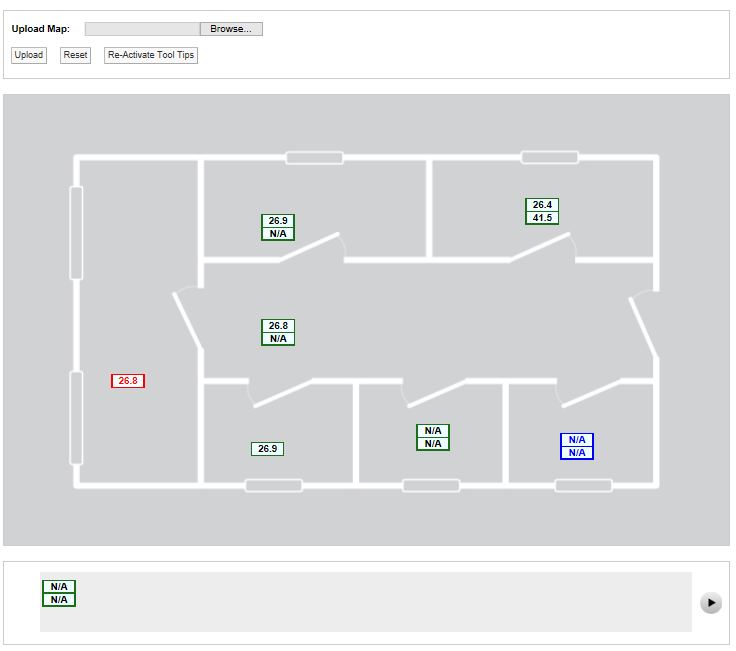

‘Out of Service’ sensors are displayed on the Plan View in blue, see below.
Each channel is represented by a single block. A double-channel device is represented by two blocks, a three-channel device by three blocks. See below for an example.
If required all icons can be removed from the Plan to the bottom bar, to perform this function select Reset, you will get a confirmation request, see below.
To continue select YES, all icons will be moved to the bottom bar.
Moving the mouse pointer over a Sensor icon displays a tool tip with the sensor name and its parent Zone. See below. Click Re-Activate Tool Tips if the tool tips are not visible.
