Sites are the main access points to the system data, each Site represents a single physical Site where receiving devices such as Network Receivers or SMS Modules are located along with Sensors. Sites can also have Sub Sites associated with the main top level Site.
You can:

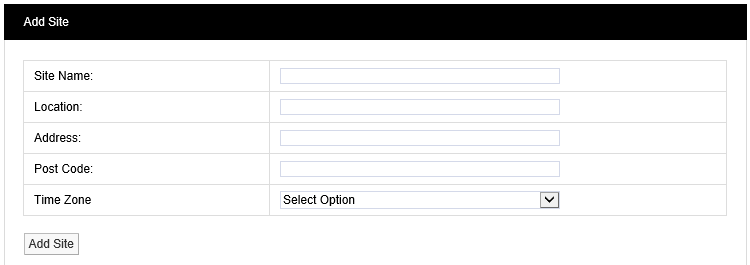

1.Select Admin>Sites, then select from the side menu to give the Add Site dialogue box: |
2.Enter Site Name, Location and Address information as appropriate. 3.Select the time zone of the Site from the Time Zone pull-down menu. (The value displayed by default is the time zone of the host PC. It is important to set this correctly, as dates in the database are stored using GMT.) |
1.Select Admin>Sites, then select from the side menu to give the Available Sites dialogue box. 2.Select the tick box next to the Site you wish to edit. 3.Select Edit in the highlighted line to give the Edit Site dialogue box. This is very similar to the Add Site dialogue box, see above. 4.Carry out the required edits, then select Update to save your changes. |
1.Select Admin>Sites, then select from the side menu to give the Available Sites dialogue box. The Sites that have been created are listed here. You can carry out Edit, Delete or Add Sub Site operations from here on the selected Site. If Sub-Sites have been added to the selected Site then you can view them by selecting View Sub Sites, otherwise View Sub Sites will not be click-able. |
1.Select Admin>Sites, then select from the side menu to give the Available Sites dialogue box. 2.Select the tick box next to the Site you wish to add a Sub Site to. 3.Select Add Sub Site to give the Add Sub Site dialogue box. This is very similar to the Add Site dialogue box, see above. 4.Enter Sub Site Name, Location and Address information as appropriate. 5.Select Add Sub Site to create the Sub Site. |
1.Select Admin>Sites, then select from the side menu to give the Available Sites dialogue box. 2.Select View Sub Sites for the Site whose Sub Sites you wish to view. (If the Site has no Sub Sites, View Sub Sites will not be click-able.) |
1.Select Admin>Sites, then select from the side menu to give the Available Sites dialogue box. 2.Select Delete against the Site that you wish to delete. 3.A confirmation box is displayed for you to confirm that you wish to delete the Site. Select YES if you are sure you wish to delete the Site, otherwise select NO. |
1.Select Admin>Sites, then select from the side menu to give the Available Sites dialogue box. 2.Select View Sub Sites for the Site which contains the Sub Sites you wish to delete. (If the Site has no Sub Sites, View Sub Sites will not be click-able.) 3.Select Delete against the Sub Site that you wish to delete. 4.A confirmation box is displayed for you to confirm that you wish to delete the Site. Select YES if you are sure you wish to delete the Sub Site, otherwise select NO. |
