| Note: | This procedure takes you through the generic setup steps for physically setting up the members of the Notion Pro Base Unit family, that is: |
•Network Receiver
•Echo Module
•SMS Module
•ARB Module
Each of these units will be referred to as a ‘Base Unit’ in the following procedure.
Install Step |
|
Notes |
|---|---|---|

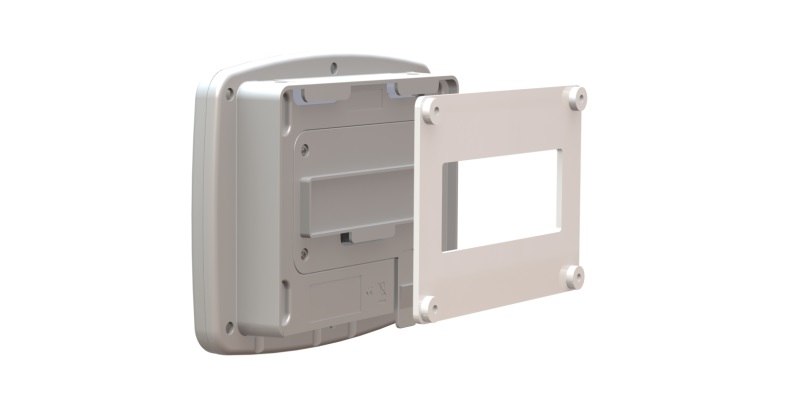

1.Using the mounting bracket as a drilling template, drill holes for the Base Unit wall mounting bracket into the wall at an appropriate location. 2.Using the spacers provided to give clearance, Screw the mounting bracket to the wall. |
|
When mounting the Base Unit, you should bear in mind that you may need to run cables from the Base Unit to the 12V power supply, also Ethernet and RS485 connections. |

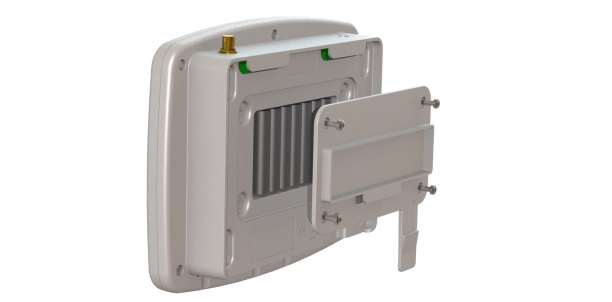

3Using a Phillips screwdriver, remove and retain the screws from the battery cover plate at the rear of the Base Unit. |
|
|
4Insert the backup battery into the recess at the rear of the Base Unit, taking care to insert the connector attached to the battery into the matching connector within the Base Unit. |
|
|
5.Screw the battery cover plate to the rear of the Base Unit. |
|
|
6.Attach the Base Unit to the mounting bracket. |
|
|
7.Using the supplied RJ45 cable, connect the Base Unit to your Network. |
|
(Echo Module communicates by radio and must NOT be connected to a Network.) |
8.Using the supplied cable, connect the Base Unit to its 12V power supply. |
|
|
9.Plug the power supply cable into the power supply unit. |
|
|
10.Slide the appropriate plug adaptor onto the power supply. |
|
Do not connect the power supply to the mains supply yet. |
11.Plug in the Base Unit power supply to the mains supply and switch on at the mains socket. |
|
A green light comes on. Power Supply works automatically with 110V-120V or 220V-240V mains voltage. |
12.Go into Notion Pro to add the device and configure it for use. |
|
