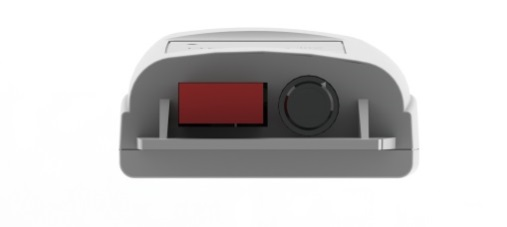

•Product Code: IN-TTD01Fx
•Product Family: NP3200 series
•Single thermocouple base connector
•As Single Channel Type T Thermocouple, with door monitoring and alarm function.
•Range -200°C to +350°C
•Resolution 0.3°C
•Accuracy (unadjusted specification):
0°C to 120°C +/-0.5°C
-100°C to 0°C +/- 1°C
-200°C to -100°C +/-1.5°C
•IP53
