•TME MM7000 Initial Configuration
•Taking a Reading with the TME MM7000
•Upload Data to an ARB Module from a TME MM7000
The TME MM7000 ThermoBarScan is a hand held temperature recording device with a sensor probe, integral barcode scanner and Bluetooth capabilities. See Figure 33 below:
Figure 33
|
||
TME MM7000 |

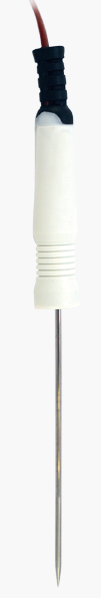

Typical Temperature/Thermocouple Probes |
The TME MM7000 can record product/area location and identity plus time, date and temperature, with the Bluetooth communication functionality enabling transmission of collected data to a PC, mobile phone, PDA or an ARB module.
•The initial configuration of the TME MM7000 is carried out via the Hanwell ThermoBarScan software installed on a PC.
•To access data uploaded to Notion Pro by the ARB Module and identified by specific barcodes scanned by the TME MM7000's barcode scanner:
i.Select Mobile Data from the main View Data menu.
ii.Select Barcode Readings from the sub-menu.
•To add barcodes, allocated to specific locations, equipment etc., to Notion Pro:
i.Select Mobile Data from the main View Data menu.
ii.Select Barcodes from the sub-menu.

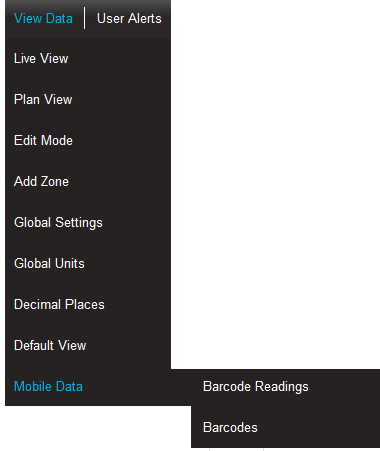

See Figure 34 below:
Figure 34
