<< Click to Display Table of Contents >> Navigation: How To . . . > (Administrators) > Set Up Sensors > Create and Edit Sensor Groups |
The Sensor Groups feature is extremely useful for grouping sensors of the same type that are measuring the same parameters.
You can:

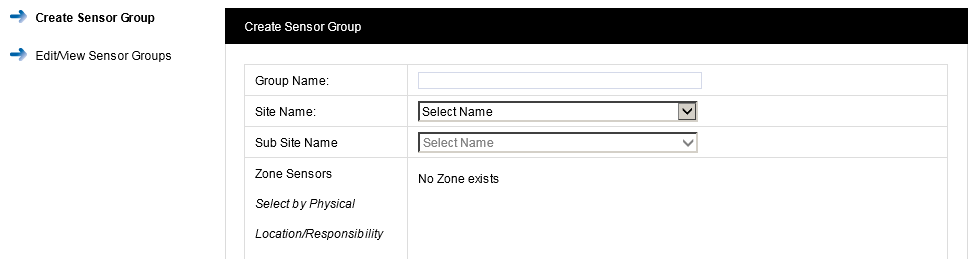

1.Select Settings>Customise Sensor Groups from the main menu bar to give the Create Sensor Group dialog box, see below |
2.Enter a name for the Group, for example 'Door Sensors'. 3.Select the owning Site for the Sensor Group from the pull-down list. If the Site has Sub Sites these will now appear. Select the Sub Site if required. 4.After selecting the Site (or Sub Site) the available Zones on that Site become visible. Select the + symbol next to the Zone name that contains the Sensors that you wish to select. 5.When you are happy with you selections click on Create Group. The Group you have created appears in the View Sensor Groups dialog box. |
1.Select Settings>Customise Sensor Groups, then select on the side menu to give the View Sensor Groups dialog box. 2.Select Edit against the Group you wish to edit. 3.From here you can delete Sensor Groups (Delete Members, or Delete for the selected Group), add a Sensor Group (Add Members) or edit a Sensor Group (Edit again from under the Actions column to add or remove sensors). |
See Also:
