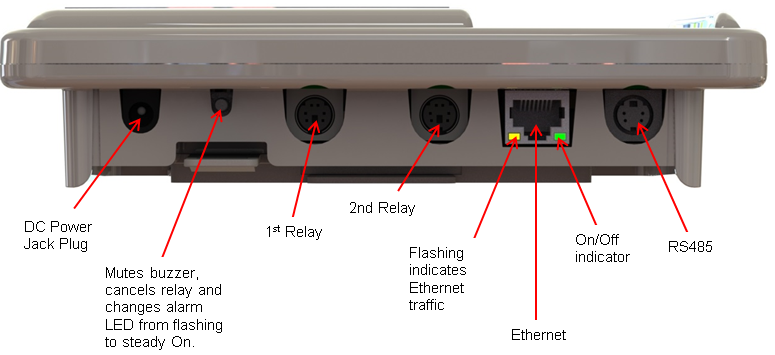

The connectors on the underside of the Network Receiver unit are as shown below.

(The connectors on the underside of the other members of the Notion Pro Base Unit family are similar, but some of the connectors are blanked off.)
